TriToQuadConverter

Overview

The input mesh must consist exclusively of TRI3 elements, must lie in the XY plane, and must be replicated. Meshes of higher-order triangles, and meshes that mix triangles with other element types, are rejected.

Two conversion algorithms are available through "algorithm", and they trade a guaranteed pure-quadrilateral result against element quality.

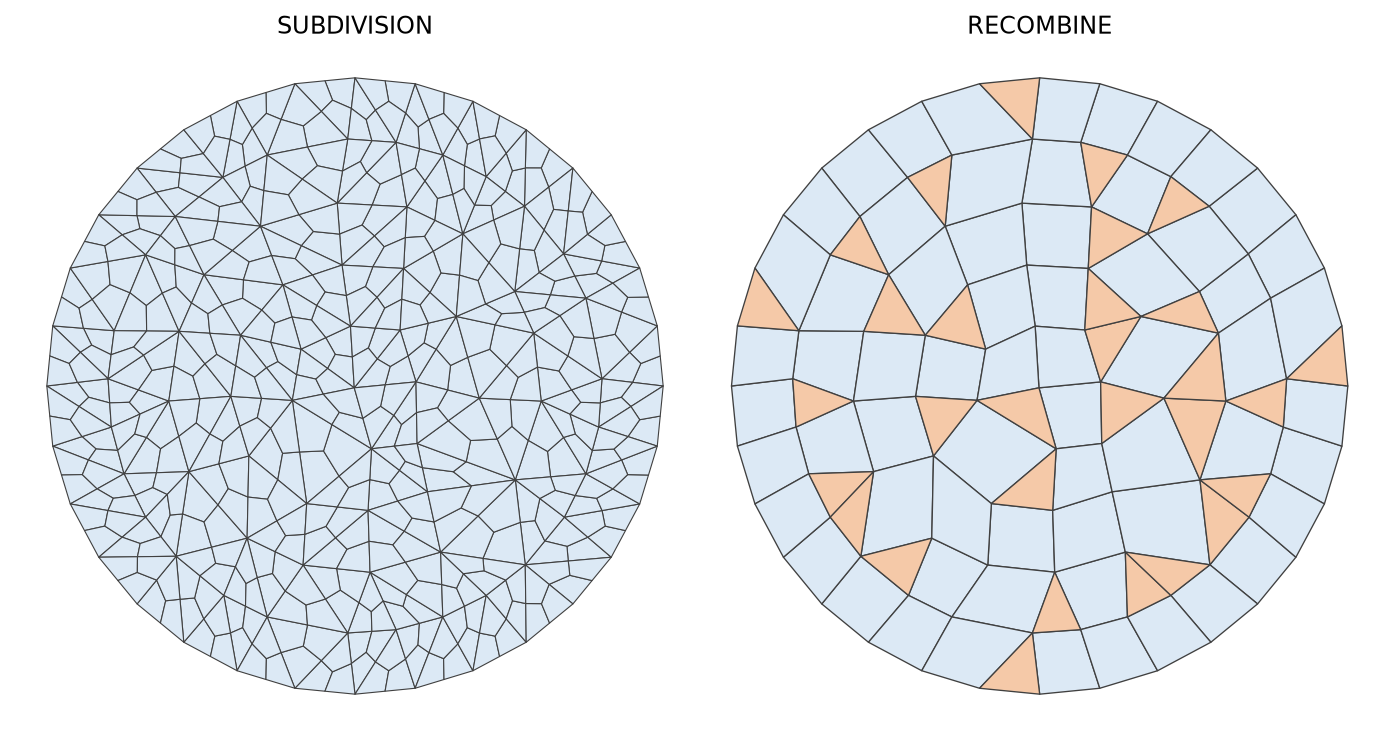

Figure 1: The two algorithms applied to the same frontal triangulation of a disk. SUBDIVISION splits every triangle into three quadrilaterals. RECOMBINE merges pairs of adjacent triangles and leaves the triangles that found no partner, shown in orange.

Preserved Mesh Data

The conversion carries the following through, under both algorithms:

• subdomain ids and names, apart from the leftover triangles of a recombination, which move into the subdomains derived from theirs as described above;

• sideset ids and names. Where a boundary edge is split, under SUBDIVISION or under "all_quad", both halves inherit the ids of the original edge;

• nodesets, rebuilt on the converted mesh;

• extra element integers.

Example Syntax

Splitting every triangle of a 32-triangle mesh into three quadrilaterals gives 96 QUAD4 elements and no leftover triangle:

[Mesh<<<{"href": "../../syntax/Mesh/index.html"}>>>]
  [gmg]
    type = GeneratedMeshGenerator<<<{"description": "Create a line, square, or cube mesh with uniformly spaced or biased elements.", "href": "GeneratedMeshGenerator.html"}>>>
    dim<<<{"description": "The dimension of the mesh to be generated"}>>> = 2
    nx<<<{"description": "Number of elements in the X direction"}>>> = 4
    ny<<<{"description": "Number of elements in the Y direction"}>>> = 4
  []
  [tri]
    type = ElementsToSimplicesConverter<<<{"description": "Splits all non-simplex elements in a mesh into simplices.", "href": "ElementsToSimplicesConverter.html"}>>>
    input<<<{"description": "Input mesh to convert to all-simplex mesh"}>>> = gmg
  []
  [to_quad]
    type = TriToQuadConverter<<<{"description": "Converts a mesh consisting of TRI3 elements into a mesh consisting of QUAD4 elements, either by splitting every triangle into three quadrilaterals or by merging pairs of adjacent triangles.", "href": "TriToQuadConverter.html"}>>>
    input<<<{"description": "The TRI3 mesh to convert into QUAD4 elements."}>>> = tri
    algorithm<<<{"description": "The algorithm used to build the quadrilaterals. 'SUBDIVISION' splits every triangle into three quadrilaterals. 'RECOMBINE' merges pairs of adjacent triangles into quadrilaterals."}>>> = SUBDIVISION
  []

  # The subdivision of each triangle depends on element id numbering
  allow_renumbering = false
[]

Recombining the same kind of mesh, with the leftover triangles of each of its two subdomains collected into a subdomain named after it. The mesh reaching the conversion carries two subdomains, a sideset on their interface, a second sideset on an interior edge, a nodeset, and an extra element integer, none of which the conversion discards:

[Mesh<<<{"href": "../../syntax/Mesh/index.html"}>>>]
  [gmg]
    type = GeneratedMeshGenerator<<<{"description": "Create a line, square, or cube mesh with uniformly spaced or biased elements.", "href": "GeneratedMeshGenerator.html"}>>>
    dim<<<{"description": "The dimension of the mesh to be generated"}>>> = 2
    nx<<<{"description": "Number of elements in the X direction"}>>> = 4
    ny<<<{"description": "Number of elements in the Y direction"}>>> = 2
    xmax<<<{"description": "Upper X Coordinate of the generated mesh"}>>> = 2
    ymax<<<{"description": "Upper Y Coordinate of the generated mesh"}>>> = 1
  []
  [tri]
    type = ElementsToSimplicesConverter<<<{"description": "Splits all non-simplex elements in a mesh into simplices.", "href": "ElementsToSimplicesConverter.html"}>>>
    input<<<{"description": "Input mesh to convert to all-simplex mesh"}>>> = gmg
  []
  [blk_right]
    type = SubdomainBoundingBoxGenerator<<<{"description": "Changes the subdomain ID of elements either (XOR) inside or outside the specified box to the specified ID.", "href": "SubdomainBoundingBoxGenerator.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = tri
    block_id<<<{"description": "Subdomain id to set for inside/outside the bounding box"}>>> = 2
    block_name<<<{"description": "Subdomain name to set for inside/outside the bounding box (optional)"}>>> = right_block
    bottom_left<<<{"description": "The bottom left point (in x,y,z with spaces in-between)."}>>> = '0 0 0'
    top_right<<<{"description": "The bottom left point (in x,y,z with spaces in-between)."}>>> = '2 1 0'
  []
  [blk_left]
    type = SubdomainBoundingBoxGenerator<<<{"description": "Changes the subdomain ID of elements either (XOR) inside or outside the specified box to the specified ID.", "href": "SubdomainBoundingBoxGenerator.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = blk_right
    block_id<<<{"description": "Subdomain id to set for inside/outside the bounding box"}>>> = 1
    block_name<<<{"description": "Subdomain name to set for inside/outside the bounding box (optional)"}>>> = left_block
    bottom_left<<<{"description": "The bottom left point (in x,y,z with spaces in-between)."}>>> = '0 0 0'
    top_right<<<{"description": "The bottom left point (in x,y,z with spaces in-between)."}>>> = '1.25 1 0'
  []
  [iface]
    type = SideSetsBetweenSubdomainsGenerator<<<{"description": "MeshGenerator that creates a sideset composed of the nodes located between two or more subdomains.", "href": "SideSetsBetweenSubdomainsGenerator.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = blk_left
    primary_block<<<{"description": "The primary set of blocks for which to draw a sideset between"}>>> = left_block
    paired_block<<<{"description": "The paired set of blocks for which to draw a sideset between"}>>> = right_block
    new_boundary<<<{"description": "The list of boundary names to create on the supplied subdomain"}>>> = block_interface
  []
  [diag_ss]
    type = ParsedGenerateSideset<<<{"description": "A MeshGenerator that adds element sides to a sideset if the centroid of the side satisfies the `combinatorial_geometry` expression.", "href": "ParsedGenerateSideset.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = iface
    combinatorial_geometry<<<{"description": "Function expression encoding a combinatorial geometry"}>>> = 'x > 1.7 & x < 1.8 & y > 0.2 & y < 0.3'
    included_subdomains<<<{"description": "A set of subdomain names or ids whose sides will be included in the new sidesets. A side is only added if the subdomain id of the corresponding element is in this set."}>>> = right_block
    normal<<<{"description": "If supplied, only faces with normal equal to this, up to normal_tol, will be added to the sidesets specified"}>>> = '1 0 0'
    normal_tol<<<{"description": "If normal is supplied then faces are only added if face_normal.normal_hat >= 1 - normal_tol, where normal_hat = normal/|normal|"}>>> = 0.4
    new_sideset_name<<<{"description": "The name of the new sideset"}>>> = interior_diagonal
  []
  [origin_ns]
    type = ExtraNodesetGenerator<<<{"description": "Creates a new node set and a new boundary made with the nodes the user provides.", "href": "ExtraNodesetGenerator.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = diag_ss
    new_boundary<<<{"description": "The names of the boundaries to create"}>>> = origin_node
    coord<<<{"description": "The nodes with coordinates you want to be in the nodeset. Separate multple coords with ';' (Either this parameter or \"nodes\" must be supplied)."}>>> = '0 0 0'
  []
  [eeid]
    type = ParsedExtraElementIDGenerator<<<{"description": "Uses a parsed expression to set an extra element id for elements (via their centroids).", "href": "ParsedExtraElementIDGenerator.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = origin_ns
    expression<<<{"description": "Function expression to return the extra element ID based on element centroid"}>>> = '1 + floor(4 * x) + 10 * floor(4 * y)'
    extra_elem_integer_name<<<{"description": "Name of the extra element integer to be added by this generator"}>>> = tri_id
  []
  [to_quad]
    type = TriToQuadConverter<<<{"description": "Converts a mesh consisting of TRI3 elements into a mesh consisting of QUAD4 elements, either by splitting every triangle into three quadrilaterals or by merging pairs of adjacent triangles.", "href": "TriToQuadConverter.html"}>>>
    input<<<{"description": "The TRI3 mesh to convert into QUAD4 elements."}>>> = eeid
    algorithm<<<{"description": "The algorithm used to build the quadrilaterals. 'SUBDIVISION' splits every triangle into three quadrilaterals. 'RECOMBINE' merges pairs of adjacent triangles into quadrilaterals."}>>> = RECOMBINE
    tri_subdomain_name_suffix<<<{"description": "'RECOMBINE' algorithm only: the triangles which could not be merged are moved out of each subdomain into a new subdomain named after it, with an underscore and this suffix appended. A subdomain without a name contributes its id instead."}>>> = leftover
  []

  # Both the triangulation and the recombination depend on element id numbering
  allow_renumbering = false
[]

Running the same mesh through the same merges with "all_quad" instead removes every remaining triangle:

[Mesh<<<{"href": "../../syntax/Mesh/index.html"}>>>]
  [to_quad]
    type = TriToQuadConverter<<<{"description": "Converts a mesh consisting of TRI3 elements into a mesh consisting of QUAD4 elements, either by splitting every triangle into three quadrilaterals or by merging pairs of adjacent triangles.", "href": "TriToQuadConverter.html"}>>>
    input<<<{"description": "The TRI3 mesh to convert into QUAD4 elements."}>>> = eeid
    algorithm<<<{"description": "The algorithm used to build the quadrilaterals. 'SUBDIVISION' splits every triangle into three quadrilaterals. 'RECOMBINE' merges pairs of adjacent triangles into quadrilaterals."}>>> = RECOMBINE
    all_quad<<<{"description": "'RECOMBINE' algorithm only: whether the triangles that could not be merged are eliminated so that the converted mesh consists exclusively of quadrilaterals."}>>> = true
  []
[]

All three examples disable renumbering. The triangulation, the subdivision and the merges all break ties by element id, so their results are reproducible only while the element numbering is stable.

Triangulations intended for recombination are best produced by XYFrontalDelaunayGenerator, which biases the triangles toward right angles so that more pairs clear "eta_min". When the boundary of the input is a parametric curve, MoveBoundaryNodesToCurveGenerator can move the boundary nodes that "all_quad" created back onto that curve.
