XYFrontalDelaunayGenerator

Overview

XYFrontalDelaunayGenerator triangulates the planar region enclosed by an input boundary mesh, optionally around holes. It shares the boundary, hole and sizing parameters of XYDelaunayGenerator; the boundary layer, output_subdomain_id, smooth_triangulation, tri_element_type, interior_point_files, stitching algorithm and verbose_stitching parameters of that generator are not available here. It defines the region with "boundary" and "holes", limits the element size with "desired_area", "desired_area_func" or "use_auto_area_func", and names the result with "output_subdomain_name", "output_boundary" and "hole_boundaries". Consult that page for the meaning of those parameters, for how a boundary ring is read out of an input mesh, and for hole stitching. "interior_points" forces nodes at given interior locations; points outside the region are ignored.

What differs is how the interior points are chosen. Rather than refining a triangulation until every element meets the area limit, this generator advances a front (Rebay, 1993). A triangle counts as too large when its circumradius exceeds the circumradius targeted at its centroid. The edges those triangles share with the acceptable ones form the front. The front is advanced by placing one point at the target size ahead of an edge and inserting it with the Bowyer-Watson algorithm. Placing points at the size the mesh is meant to have, instead of subdividing until that size is reached, gives a triangulation whose element shapes are chosen rather than inherited.

The purpose of that control here is to feed TriToQuadConverter. Recombination merges pairs of adjacent triangles and scores the merge on how close the resulting internal angles are to (Remacle et al., 2012), so a triangulation biased toward right angles yields far more merges than an equilateral one.

The output consists of first-order TRI3 elements. The boundary input must also be first order, and the generator requires a replicated mesh.

Target Size Metric

"metric" selects the norm in which the target size ahead of the front is measured.

L2 measures the distance to the new point in the Euclidean norm, which is the conventional frontal-Delaunay choice and places points that make the triangles equilateral. It is the right choice when the triangles are the final mesh.

LINF measures it in the norm of a local frame (Remacle et al., 2013). Because the unit ball of that norm is a square rather than a circle, the placement favors triangles that are right isosceles in the frame, and two such triangles sharing their hypotenuse recombine into a near-square quadrilateral. This is the metric to use when TriToQuadConverter follows.

Local Frame Orientation

The norm is only defined once a local frame is fixed, and "orientation" supplies it. The parameter has no effect when "metric" is L2, which needs no frame.

BOUNDARY takes the frame from the tangent of the nearest boundary segment. It requires no solve, and it aligns the elements with the boundary where they meet it, but far from the boundary the nearest segment is a poor guide and the frame can turn abruptly between neighboring points.

CROSS_FIELD instead solves for a smooth four-fold direction field over the domain. A coarse background triangulation is built first; the boundary tangents are imposed on it in a representation under which four directions apart are the same value, that representation is smoothed by a Laplace solve, and the frame at any point is then interpolated from the background mesh. The field is boundary-aligned near the boundary and varies smoothly inside, which is what keeps the right isosceles triangles, and so the quadrilaterals that TriToQuadConverter later merges them into, aligned with each other across the interior.

A cross field cannot be smooth everywhere on every domain. It has singularities, points where the frame is undefined. The triangles placed around a singularity cannot all be aligned with each other, and a quadrilateral mesh recombined from them acquires a node there whose valence is not four. Those singularities are forced by the geometry, not by the solve: they arise where a boundary corner turns through an angle that is not a multiple of , and where the tangent of a curved boundary winds far enough that no smooth interpolation of the imposed directions exists in the interior. A circular boundary is the clearest case of the second kind.

A reentrant corner does not by itself force a singularity. The corner of a rectilinear L-shaped domain turns through , a multiple of , so the field passes through it without a defect and no irregular vertex is required: three quadrilaterals meeting at that corner is the regular configuration for it.

Example Syntax

Triangulating a disk. This input sets neither "metric" nor "orientation", so the elements come out right isosceles in the frame of a cross field solved over the disk:

[Mesh<<<{"href": "../../syntax/Mesh/index.html"}>>>]
  [outer_bdy]
    type = ParsedCurveGenerator<<<{"description": "This ParsedCurveGenerator object is designed to generate a mesh of a curve that consists of EDGE2, EDGE3, or EDGE4 elements.", "href": "ParsedCurveGenerator.html"}>>>
    x_formula<<<{"description": "Function expression of x(t)"}>>> = 'r*cos(t)'
    y_formula<<<{"description": "Function expression of y(t)"}>>> = 'r*sin(t)'
    section_bounding_t_values<<<{"description": "The 't' values that bound the sections of the curve. Start and end points must be included. The number of entries in 'nums_segments' should be equal to one less than the number of entries in this parameter."}>>> = '${fparse 0.0} ${fparse pi} ${fparse 2.0*pi}'
    constant_names<<<{"description": "Vector of constants used in the parsed function (use this for kB etc.)"}>>> = 'r'
    constant_expressions<<<{"description": "Vector of values for the constants in constant_names (can be an FParser expression)"}>>> = '1.0'
    nums_segments<<<{"description": "Numbers of segments (EDGE elements) of each section of the curve to be generated. The number of entries in this parameter should be equal to one less than the number of entries in 'section_bounding_t_values'"}>>> = '16 16'
    is_closed_loop<<<{"description": "Whether the curve is closed or not."}>>> = true
  []
  [triang]
    type = XYFrontalDelaunayGenerator<<<{"description": "Triangulates meshes within boundaries defined by input meshes by advancing a front, which places points at a target size ahead of the triangles that are still too large.", "href": "XYFrontalDelaunayGenerator.html"}>>>
    boundary<<<{"description": "The input MeshGenerator defining the output outer boundary and required Steiner points."}>>> = 'outer_bdy'
    refine_boundary<<<{"description": "Whether to allow automatically refining the outer boundary."}>>> = false
    desired_area<<<{"description": "Desired (maximum) triangle area, or 0 to skip uniform refinement"}>>> = 0.02
    output_subdomain_name<<<{"description": "Subdomain name to set on new triangles."}>>> = 'triangles'
  []
[]

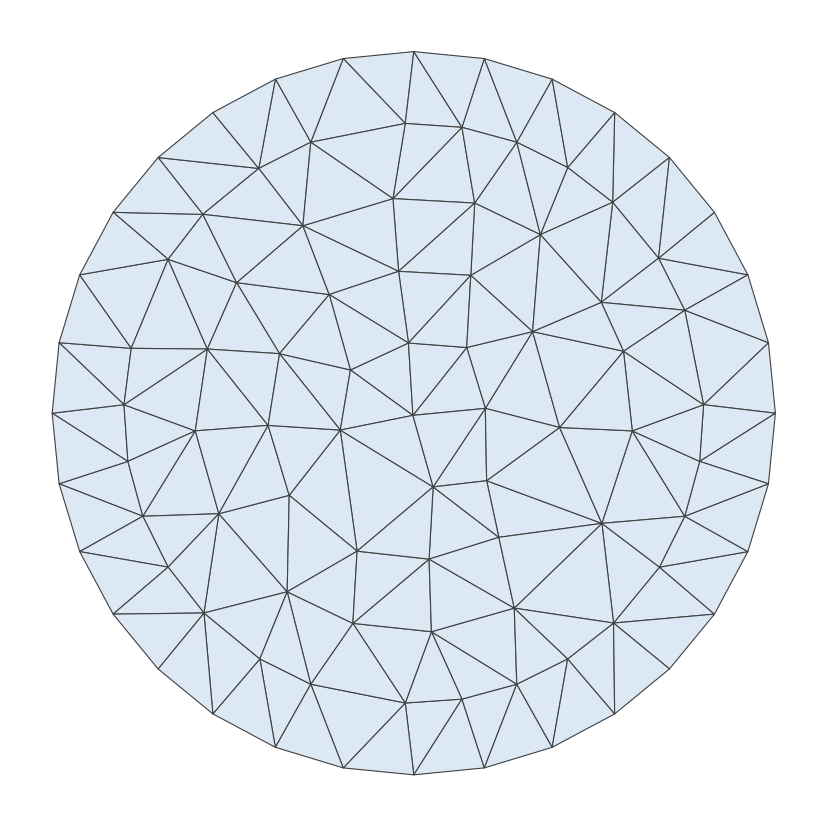

Figure 1: The disk triangulation of the input above. The advance places the points, so the triangles lean toward right isosceles shapes aligned with the cross field.

A domain containing a hole. The front advances from the hole boundary as well as from the outer boundary, and the name given in "hole_boundaries" is carried onto the sideset that the hole leaves behind:

[Mesh<<<{"href": "../../syntax/Mesh/index.html"}>>>]
  [outer_bdy]
    type = ParsedCurveGenerator<<<{"description": "This ParsedCurveGenerator object is designed to generate a mesh of a curve that consists of EDGE2, EDGE3, or EDGE4 elements.", "href": "ParsedCurveGenerator.html"}>>>
    x_formula<<<{"description": "Function expression of x(t)"}>>> = 'r*cos(t)'
    y_formula<<<{"description": "Function expression of y(t)"}>>> = 'r*sin(t)'
    section_bounding_t_values<<<{"description": "The 't' values that bound the sections of the curve. Start and end points must be included. The number of entries in 'nums_segments' should be equal to one less than the number of entries in this parameter."}>>> = '${fparse 0.0} ${fparse pi} ${fparse 2.0*pi}'
    constant_names<<<{"description": "Vector of constants used in the parsed function (use this for kB etc.)"}>>> = 'r'
    constant_expressions<<<{"description": "Vector of values for the constants in constant_names (can be an FParser expression)"}>>> = '1.0'
    nums_segments<<<{"description": "Numbers of segments (EDGE elements) of each section of the curve to be generated. The number of entries in this parameter should be equal to one less than the number of entries in 'section_bounding_t_values'"}>>> = '16 16'
    is_closed_loop<<<{"description": "Whether the curve is closed or not."}>>> = true
  []
  [inner_bdy]
    type = ParsedCurveGenerator<<<{"description": "This ParsedCurveGenerator object is designed to generate a mesh of a curve that consists of EDGE2, EDGE3, or EDGE4 elements.", "href": "ParsedCurveGenerator.html"}>>>
    x_formula<<<{"description": "Function expression of x(t)"}>>> = 'r*cos(t)'
    y_formula<<<{"description": "Function expression of y(t)"}>>> = 'r*sin(t)'
    section_bounding_t_values<<<{"description": "The 't' values that bound the sections of the curve. Start and end points must be included. The number of entries in 'nums_segments' should be equal to one less than the number of entries in this parameter."}>>> = '${fparse 0.0} ${fparse pi} ${fparse 2.0*pi}'
    constant_names<<<{"description": "Vector of constants used in the parsed function (use this for kB etc.)"}>>> = 'r'
    constant_expressions<<<{"description": "Vector of values for the constants in constant_names (can be an FParser expression)"}>>> = '0.35'
    nums_segments<<<{"description": "Numbers of segments (EDGE elements) of each section of the curve to be generated. The number of entries in this parameter should be equal to one less than the number of entries in 'section_bounding_t_values'"}>>> = '6 6'
    is_closed_loop<<<{"description": "Whether the curve is closed or not."}>>> = true
  []
  [triang]
    type = XYFrontalDelaunayGenerator<<<{"description": "Triangulates meshes within boundaries defined by input meshes by advancing a front, which places points at a target size ahead of the triangles that are still too large.", "href": "XYFrontalDelaunayGenerator.html"}>>>
    boundary<<<{"description": "The input MeshGenerator defining the output outer boundary and required Steiner points."}>>> = 'outer_bdy'
    holes<<<{"description": "The MeshGenerators that define mesh holes."}>>> = 'inner_bdy'
    hole_boundaries<<<{"description": "Boundary names to set on holes.  Default IDs are numbered up from 1 if no hole meshes are stitched; or from maximum boundary ID of all the stitched hole meshes + 2."}>>> = 'inner'
    refine_boundary<<<{"description": "Whether to allow automatically refining the outer boundary."}>>> = false
    refine_holes<<<{"description": "Whether to allow automatically refining each hole boundary."}>>> = 'false'
    desired_area<<<{"description": "Desired (maximum) triangle area, or 0 to skip uniform refinement"}>>> = 0.02
    output_subdomain_name<<<{"description": "Subdomain name to set on new triangles."}>>> = 'triangles'
  []
[]

A polyline boundary with a reentrant corner, which the front reaches from two sides at once:

[Mesh<<<{"href": "../../syntax/Mesh/index.html"}>>>]
  [outer_bdy]
    type = PolyLineMeshGenerator<<<{"description": "Generates meshes from edges connecting a list of points.", "href": "PolyLineMeshGenerator.html"}>>>
    points<<<{"description": "The points defining the polyline, in order"}>>> = '0.0 0.0 0.0
              2.0 0.0 0.0
              2.0 1.0 0.0
              1.0 1.0 0.0
              1.0 2.0 0.0
              0.0 2.0 0.0'
    loop<<<{"description": "Whether edges should form a closed loop"}>>> = true
  []
  [triang]
    type = XYFrontalDelaunayGenerator<<<{"description": "Triangulates meshes within boundaries defined by input meshes by advancing a front, which places points at a target size ahead of the triangles that are still too large.", "href": "XYFrontalDelaunayGenerator.html"}>>>
    boundary<<<{"description": "The input MeshGenerator defining the output outer boundary and required Steiner points."}>>> = 'outer_bdy'
    refine_boundary<<<{"description": "Whether to allow automatically refining the outer boundary."}>>> = true
    desired_area<<<{"description": "Desired (maximum) triangle area, or 0 to skip uniform refinement"}>>> = 0.02
    output_subdomain_name<<<{"description": "Subdomain name to set on new triangles."}>>> = 'triangles'
  []
[]

The end-to-end use is the pipeline below, which triangulates the domain of the MBB beam (the Messerschmitt-Bölkow-Blohm beam, the rectangular benchmark domain of topology optimization) with three circular holes cut into it, and then recombines the result into quadrilaterals, collecting the triangles that could not be merged into their own subdomain so the yield can be measured:

[Mesh<<<{"href": "../../syntax/Mesh/index.html"}>>>]
  [outer_bdy]
    type = PolyLineMeshGenerator<<<{"description": "Generates meshes from edges connecting a list of points.", "href": "PolyLineMeshGenerator.html"}>>>
    points<<<{"description": "The points defining the polyline, in order"}>>> = '0.0 0.0 0.0
              3.0 0.0 0.0
              3.0 1.0 0.0
              0.0 1.0 0.0'
    loop<<<{"description": "Whether edges should form a closed loop"}>>> = true
    nums_edges_between_points<<<{"description": "How many Edge elements to build between each point pair. If a single value is given, it is applied to all segments. Otherwise, the number of entries must match the number of segments."}>>> = '21 7 21 7'
  []
  [hole_left]
    type = ParsedCurveGenerator<<<{"description": "This ParsedCurveGenerator object is designed to generate a mesh of a curve that consists of EDGE2, EDGE3, or EDGE4 elements.", "href": "ParsedCurveGenerator.html"}>>>
    x_formula<<<{"description": "Function expression of x(t)"}>>> = 'x0 + r*cos(t)'
    y_formula<<<{"description": "Function expression of y(t)"}>>> = 'y0 + r*sin(t)'
    section_bounding_t_values<<<{"description": "The 't' values that bound the sections of the curve. Start and end points must be included. The number of entries in 'nums_segments' should be equal to one less than the number of entries in this parameter."}>>> = '${fparse 0.0} ${fparse pi} ${fparse 2.0*pi}'
    constant_names<<<{"description": "Vector of constants used in the parsed function (use this for kB etc.)"}>>> = 'x0 y0 r'
    constant_expressions<<<{"description": "Vector of values for the constants in constant_names (can be an FParser expression)"}>>> = '0.6 0.5 0.22'
    nums_segments<<<{"description": "Numbers of segments (EDGE elements) of each section of the curve to be generated. The number of entries in this parameter should be equal to one less than the number of entries in 'section_bounding_t_values'"}>>> = '5 5'
    is_closed_loop<<<{"description": "Whether the curve is closed or not."}>>> = true
  []
  [hole_center]
    type = ParsedCurveGenerator<<<{"description": "This ParsedCurveGenerator object is designed to generate a mesh of a curve that consists of EDGE2, EDGE3, or EDGE4 elements.", "href": "ParsedCurveGenerator.html"}>>>
    x_formula<<<{"description": "Function expression of x(t)"}>>> = 'x0 + r*cos(t)'
    y_formula<<<{"description": "Function expression of y(t)"}>>> = 'y0 + r*sin(t)'
    section_bounding_t_values<<<{"description": "The 't' values that bound the sections of the curve. Start and end points must be included. The number of entries in 'nums_segments' should be equal to one less than the number of entries in this parameter."}>>> = '${fparse 0.0} ${fparse pi} ${fparse 2.0*pi}'
    constant_names<<<{"description": "Vector of constants used in the parsed function (use this for kB etc.)"}>>> = 'x0 y0 r'
    constant_expressions<<<{"description": "Vector of values for the constants in constant_names (can be an FParser expression)"}>>> = '1.5 0.5 0.22'
    nums_segments<<<{"description": "Numbers of segments (EDGE elements) of each section of the curve to be generated. The number of entries in this parameter should be equal to one less than the number of entries in 'section_bounding_t_values'"}>>> = '5 5'
    is_closed_loop<<<{"description": "Whether the curve is closed or not."}>>> = true
  []
  [hole_right]
    type = ParsedCurveGenerator<<<{"description": "This ParsedCurveGenerator object is designed to generate a mesh of a curve that consists of EDGE2, EDGE3, or EDGE4 elements.", "href": "ParsedCurveGenerator.html"}>>>
    x_formula<<<{"description": "Function expression of x(t)"}>>> = 'x0 + r*cos(t)'
    y_formula<<<{"description": "Function expression of y(t)"}>>> = 'y0 + r*sin(t)'
    section_bounding_t_values<<<{"description": "The 't' values that bound the sections of the curve. Start and end points must be included. The number of entries in 'nums_segments' should be equal to one less than the number of entries in this parameter."}>>> = '${fparse 0.0} ${fparse pi} ${fparse 2.0*pi}'
    constant_names<<<{"description": "Vector of constants used in the parsed function (use this for kB etc.)"}>>> = 'x0 y0 r'
    constant_expressions<<<{"description": "Vector of values for the constants in constant_names (can be an FParser expression)"}>>> = '2.4 0.5 0.22'
    nums_segments<<<{"description": "Numbers of segments (EDGE elements) of each section of the curve to be generated. The number of entries in this parameter should be equal to one less than the number of entries in 'section_bounding_t_values'"}>>> = '5 5'
    is_closed_loop<<<{"description": "Whether the curve is closed or not."}>>> = true
  []
  [triang]
    type = XYFrontalDelaunayGenerator<<<{"description": "Triangulates meshes within boundaries defined by input meshes by advancing a front, which places points at a target size ahead of the triangles that are still too large.", "href": "XYFrontalDelaunayGenerator.html"}>>>
    boundary<<<{"description": "The input MeshGenerator defining the output outer boundary and required Steiner points."}>>> = 'outer_bdy'
    holes<<<{"description": "The MeshGenerators that define mesh holes."}>>> = 'hole_left
             hole_center
             hole_right'
    refine_boundary<<<{"description": "Whether to allow automatically refining the outer boundary."}>>> = false
    refine_holes<<<{"description": "Whether to allow automatically refining each hole boundary."}>>> = 'false false false'
    desired_area<<<{"description": "Desired (maximum) triangle area, or 0 to skip uniform refinement"}>>> = 0.01
    metric<<<{"description": "The norm the target size is measured in when a point is placed ahead of the front. 'L2' places points that make equilateral triangles. 'LINF' places points that make right isosceles triangles in the local frame, the shape that recombines into good quadrilaterals."}>>> = LINF
    orientation<<<{"description": "Where the local frame the 'LINF' metric measures in comes from. 'CROSS_FIELD' solves for a cross field over the domain. 'BOUNDARY' takes the frame of the nearest boundary segment, which needs no solve. This parameter has no effect when metric is 'L2'."}>>> = CROSS_FIELD
    output_subdomain_name<<<{"description": "Subdomain name to set on new triangles."}>>> = 'mbb'
  []
  [to_quad]
    type = TriToQuadConverter<<<{"description": "Converts a mesh consisting of TRI3 elements into a mesh consisting of QUAD4 elements, either by splitting every triangle into three quadrilaterals or by merging pairs of adjacent triangles.", "href": "TriToQuadConverter.html"}>>>
    input<<<{"description": "The TRI3 mesh to convert into QUAD4 elements."}>>> = triang
    algorithm<<<{"description": "The algorithm used to build the quadrilaterals. 'SUBDIVISION' splits every triangle into three quadrilaterals. 'RECOMBINE' merges pairs of adjacent triangles into quadrilaterals."}>>> = RECOMBINE
    eta_min<<<{"description": "'RECOMBINE' algorithm only: the quality score eta = 1 - (2 / pi) max_k |pi / 2 - alpha_k| of the quadrilateral, in which alpha_k are its four internal angles, that a pair of adjacent triangles must reach to be merged. A rectangle scores 1 and a non-convex quadrilateral 0."}>>> = 0.3
  []
  [smooth]
    type = SmoothMeshGenerator<<<{"description": "Utilizes the specified smoothing algorithm to attempt to improve mesh quality.", "href": "SmoothMeshGenerator.html"}>>>
    input<<<{"description": "The mesh we want to smooth."}>>> = to_quad
    algorithm<<<{"description": "The smoothing algorithm to use."}>>> = laplace
  []

  # Greedy matching breaks score ties by element id, so keep the ids stable across processor counts
  allow_renumbering = false
[]

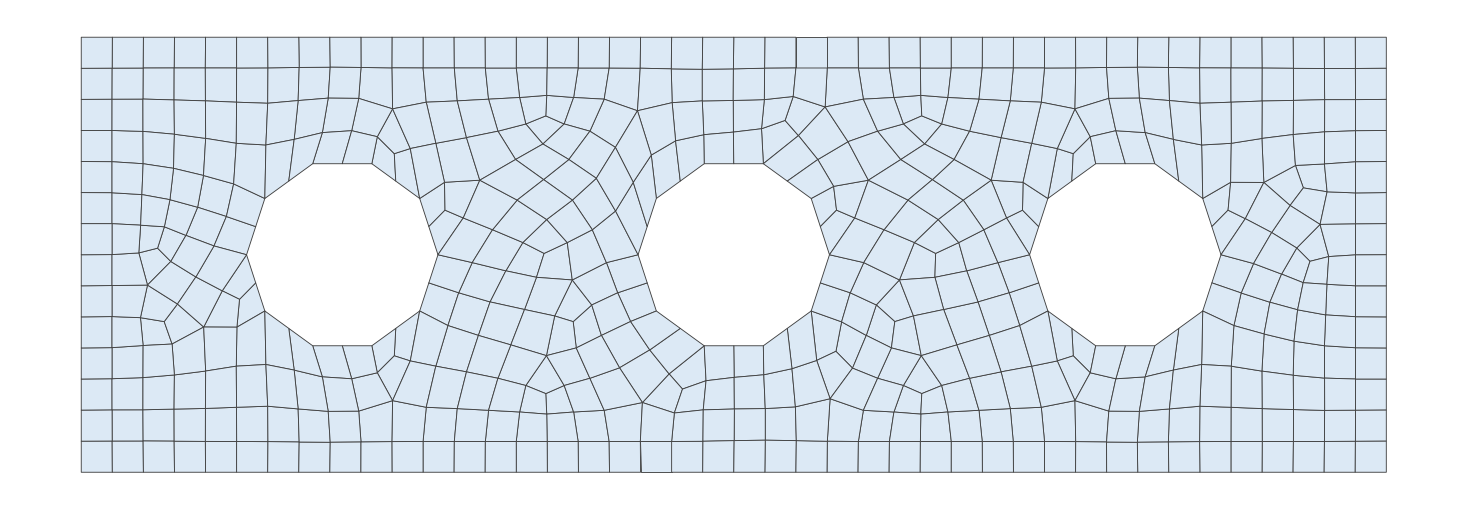

Figure 2: The MBB-beam domain meshed by this pipeline with "all_quad", recombined into quadrilaterals and smoothed.
